Train DECIPHER model with multi-slices
(Estimated time: ~5 min with GPU)
In this vignette, we show how to train DECIPHER model on multiple spatial slices with batch effects.
Check data
Run DECIPHER
Visualize results
[1]:
import scanpy as sc
from decipher import DECIPHER
from decipher.utils import scanpy_viz, gex_embedding
[2]:
!uv pip list | grep decipher
!uv pip list | grep torch
Using Python 3.11.9 environment at: /flash/grp/gglab/xiacr/DECIPHER-dev/conda
cell-decipher 0.3.1 /flash/grp/gglab/xiacr/DECIPHER-dev
Using Python 3.11.9 environment at: /flash/grp/gglab/xiacr/DECIPHER-dev/conda
harmony-pytorch 0.1.8
pytorch-lightning 2.3.3
torch 2.3.1
torch-cluster 1.6.3+pt23cu121
torch-geometric 2.5.3
torch-scatter 2.1.2+pt23cu121
torch-sparse 0.6.18+pt23cu121
torch-spline-conv 1.2.2+pt23cu121
torchaudio 2.3.1
torchmetrics 1.5.0
torchvision 0.18.1
[3]:
sc.set_figure_params(dpi=80)
Step 1: Check data
Here we use two simulation slices as an example, you can download them from Google Drive (slice1, slice2)
[4]:
slice1 = sc.read_h5ad('./slice1.h5ad')
slice2 = sc.read_h5ad('./slice2.h5ad')
adata = slice1.concatenate(slice2, batch_key='slice')
/tmp/ipykernel_2686975/665345369.py:3: FutureWarning: Use anndata.concat instead of AnnData.concatenate, AnnData.concatenate is deprecated and will be removed in the future. See the tutorial for concat at: https://anndata.readthedocs.io/en/latest/concatenation.html
adata = slice1.concatenate(slice2, batch_key='slice')
These two slices share the same cell types:
T cell
B cell
Monocyte
They also share the same spatial patterns:
region 1: T cell & Monocyte mixed
region 2: T cell only
region 3: T cell & B cell mixed
[5]:

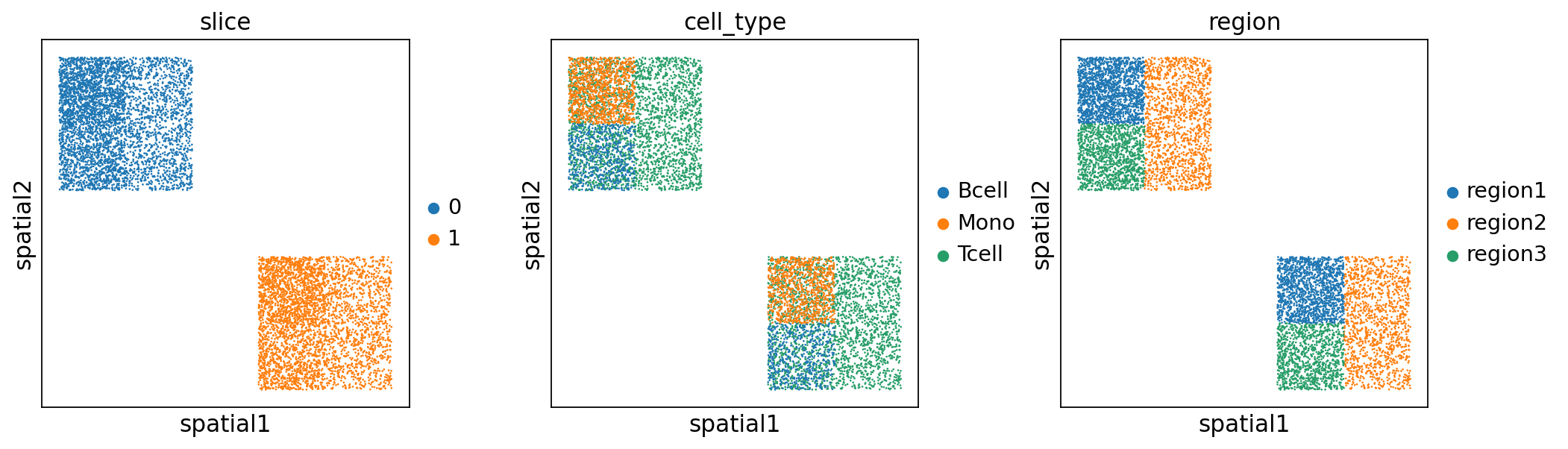

sc.pl.spatial(adata, color=['slice', 'cell_type', 'region'], spot_size=0.03, wspace=0.25)
[6]:
adata = gex_embedding(adata)
2026-01-20 11:19:37.841 | INFO | rui_utils.sc:gex_embedding:129 - Gene expression embedding...
2026-01-20 11:19:39.417 | INFO | rui_utils.gpu:select_free_gpu:39 - Using GPU [0] as computation device.
2026-01-20 11:19:39.419 | INFO | rui_utils.gpu:manage_gpu:82 - Using GPU 0 and None memory strategy.
/flash/grp/gglab/xiacr/DECIPHER-dev/conda/lib/python3.11/site-packages/numba/np/ufunc/parallel.py:371: NumbaWarning: The TBB threading layer requires TBB version 2021 update 6 or later i.e., TBB_INTERFACE_VERSION >= 12060. Found TBB_INTERFACE_VERSION = 12050. The TBB threading layer is disabled.
warnings.warn(problem)

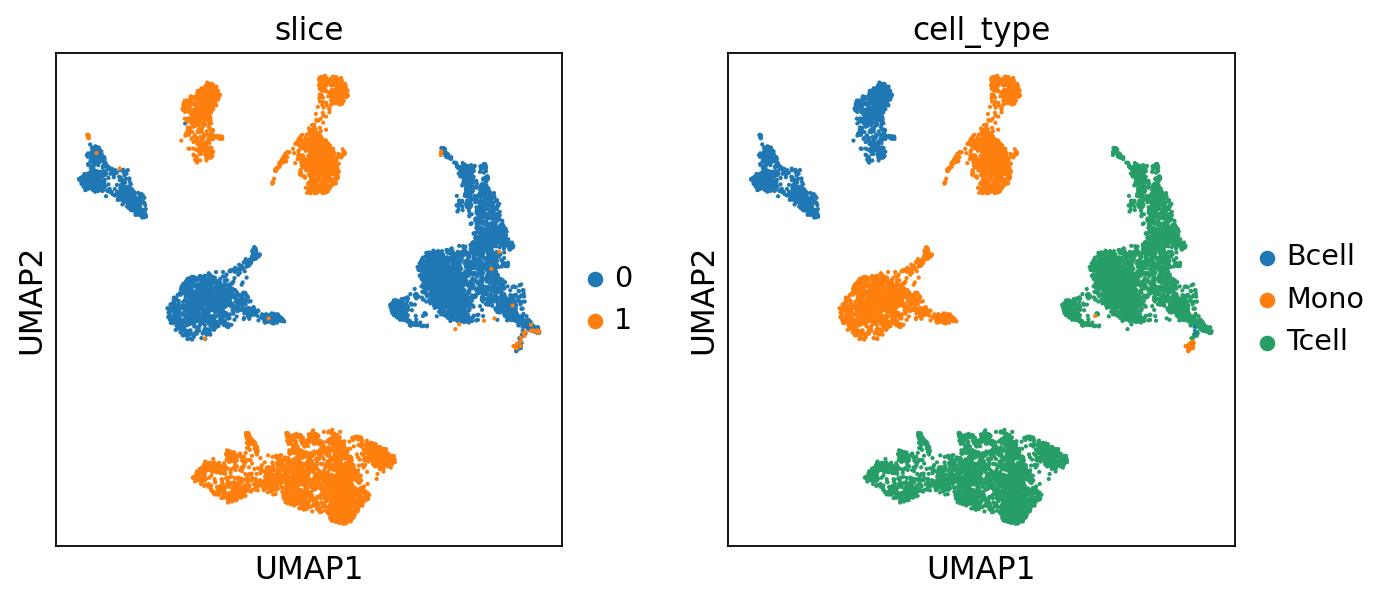

Then we check the batch effects between slices. We can see that the batch effects are significant.
[7]:
sc.pl.umap(adata, color=['slice', 'cell_type'])
Step 2: Run DECIPHER
We input a list of Anndata objects, each one is a spaital slices. DECIPHER will automatically view each object as one batch and remove the batch effects.
If you do not want to remove batch effects, just import the CFG by
from decipher import CFGand setCFG.omics.ignore_batch = True
[8]:
# Init model
model = DECIPHER(work_dir='./decipher_multi_slices', overwrite=True)
# Reload the slices
slice1 = sc.read_h5ad('./slice1.h5ad')
slice2 = sc.read_h5ad('./slice2.h5ad')
# Register the slices
model.register_data([slice1, slice2])
# Run model
model.fit_omics()
Seed set to 0
/flash/grp/gglab/xiacr/DECIPHER-dev/decipher/data/process.py:42: FutureWarning: Use anndata.concat instead of AnnData.concatenate, AnnData.concatenate is deprecated and will be removed in the future. See the tutorial for concat at: https://anndata.readthedocs.io/en/latest/concatenation.html
adata = adata_raw[0].concatenate(adata_raw[1:], batch_key="batch", uns_merge="same")
2026-01-20 11:19:47.440 | INFO | decipher.data.process:omics_data_process:47 - Detected 2 batches.
2026-01-20 11:19:47.442 | INFO | decipher.data.process:omics_data_process:54 - Preprocessing 8405 cells.
2026-01-20 11:19:47.625 | INFO | decipher.data.process:omics_data_process:60 - Filter 0 cells with < 3 genes.
2026-01-20 11:19:47.921 | INFO | decipher.data.process:omics_data_process:63 - Filter 9701 genes with < 3 cells.
2026-01-20 11:19:47.922 | INFO | decipher.data.process:omics_data_process:70 - Selecting 2000 highly variable genes.
2026-01-20 11:19:48.166 | INFO | decipher.data.process:omics_data_process:84 - Per batch scaling.
/flash/grp/gglab/xiacr/DECIPHER-dev/conda/lib/python3.11/site-packages/scanpy/preprocessing/_scale.py:318: UserWarning: Received a view of an AnnData. Making a copy.
view_to_actual(adata)
/flash/grp/gglab/xiacr/DECIPHER-dev/conda/lib/python3.11/site-packages/scanpy/preprocessing/_scale.py:318: UserWarning: Received a view of an AnnData. Making a copy.
view_to_actual(adata)
/flash/grp/gglab/xiacr/DECIPHER-dev/decipher/data/process.py:92: FutureWarning: Use anndata.concat instead of AnnData.concatenate, AnnData.concatenate is deprecated and will be removed in the future. See the tutorial for concat at: https://anndata.readthedocs.io/en/latest/concatenation.html
adata = adatas[0].concatenate(adatas[1:], batch_key="_batch")
2026-01-20 11:19:48.411 | SUCCESS | decipher.data.process:omics_data_process:97 - Preprocessing finished in 0.97 seconds.
2026-01-20 11:19:48.493 | INFO | decipher.graphic.knn:cal_mnn:26 - Computing MNN pairs with k = 5
2026-01-20 11:19:48.495 | DEBUG | decipher.graphic.knn:cal_mnn:33 - Use reference-based MNN
2026-01-20 11:19:48.509 | DEBUG | decipher.graphic.knn:svd:133 - x shape: (4512, 2000), y shape: (3893, 2000)
2026-01-20 11:19:48.630 | INFO | decipher.graphic.knn:svd:151 - Use CUDA for small dataset
2026-01-20 11:19:50.420 | DEBUG | rui_utils.knn:knn:53 - Use cuml to compute KNN graph.
2026-01-20 11:19:50.425 | DEBUG | rui_utils.knn:knn:53 - Use cuml to compute KNN graph.
2026-01-20 11:19:51.303 | INFO | decipher.graphic.knn:findMNN:111 - Found 5842 MNN pairs
2026-01-20 11:19:51.355 | DEBUG | decipher.graphic.build:build_graph:78 - Build graph with batch.
2026-01-20 11:19:51.455 | SUCCESS | decipher.graphic.build:build_graph:106 - Built knn graph with 8405 nodes and 168100 edges, 20.00 edges/node.
2026-01-20 11:19:51.465 | DEBUG | decipher.nn.models._basic:__init__:27 - {'gex_dims': [2000, 256, 32], 'dropout': 0.1, 'temperature_center': 0.07, 'lr': 0.001, 'weight_decay': 1e-05, 'lr_scheduler': False, 'num_training_steps': 99999, 'warmup_steps': 1000}
2026-01-20 11:19:51.475 | DEBUG | rui_utils.torch.trainer:init_trainer:64 - Run model with precision 16-mixed
/flash/grp/gglab/xiacr/DECIPHER-dev/conda/lib/python3.11/site-packages/lightning_fabric/plugins/environments/slurm.py:204: The `srun` command is available on your system but is not used. HINT: If your intention is to run Lightning on SLURM, prepend your python command with `srun` like so: srun python /flash/grp/gglab/xiacr/DECIPHER-dev/conda/lib/python ...
Using 16bit Automatic Mixed Precision (AMP)
GPU available: True (cuda), used: True
TPU available: False, using: 0 TPU cores
HPU available: False, using: 0 HPUs
You are using a CUDA device ('NVIDIA A100-SXM4-80GB') that has Tensor Cores. To properly utilize them, you should set `torch.set_float32_matmul_precision('medium' | 'high')` which will trade-off precision for performance. For more details, read https://pytorch.org/docs/stable/generated/torch.set_float32_matmul_precision.html#torch.set_float32_matmul_precision
/flash/grp/gglab/xiacr/DECIPHER-dev/conda/lib/python3.11/site-packages/pytorch_lightning/callbacks/model_checkpoint.py:652: Checkpoint directory /flash/grp/gglab/xiacr/DECIPHER-dev/docs/tutorials/decipher_multi_slices/sc_model exists and is not empty.
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0]
| Name | Type | Params | Mode
------------------------------------------------------
0 | center_encoder | MLP | 520 K | train
1 | criterion | NTXentLoss | 0 | train
------------------------------------------------------
520 K Trainable params
0 Non-trainable params
520 K Total params
2.084 Total estimated model params size (MB)
Metric train/total_loss improved. New best score: 6.298
Epoch 0, global step 33: 'train/total_loss' reached 6.29842 (best 6.29842), saving model to '/flash/grp/gglab/xiacr/DECIPHER-dev/docs/tutorials/decipher_multi_slices/sc_model/epoch=0-step=33.ckpt' as top 3
Metric train/total_loss improved by 1.522 >= min_delta = 0.0. New best score: 4.777
Epoch 1, global step 66: 'train/total_loss' reached 4.77679 (best 4.77679), saving model to '/flash/grp/gglab/xiacr/DECIPHER-dev/docs/tutorials/decipher_multi_slices/sc_model/epoch=1-step=66.ckpt' as top 3
Metric train/total_loss improved by 1.057 >= min_delta = 0.0. New best score: 3.719
Epoch 2, global step 99: 'train/total_loss' reached 3.71932 (best 3.71932), saving model to '/flash/grp/gglab/xiacr/DECIPHER-dev/docs/tutorials/decipher_multi_slices/sc_model/epoch=2-step=99-v1.ckpt' as top 3
Metric train/total_loss improved by 0.262 >= min_delta = 0.0. New best score: 3.457
Epoch 3, global step 132: 'train/total_loss' reached 3.45726 (best 3.45726), saving model to '/flash/grp/gglab/xiacr/DECIPHER-dev/docs/tutorials/decipher_multi_slices/sc_model/epoch=3-step=132-v1.ckpt' as top 3
Metric train/total_loss improved by 0.471 >= min_delta = 0.0. New best score: 2.987
Epoch 4, global step 165: 'train/total_loss' reached 2.98667 (best 2.98667), saving model to '/flash/grp/gglab/xiacr/DECIPHER-dev/docs/tutorials/decipher_multi_slices/sc_model/epoch=4-step=165-v1.ckpt' as top 3
`Trainer.fit` stopped: `max_epochs=5` reached.
2026-01-20 11:19:56.405 | INFO | decipher.emb:load_model:100 - Loading model from decipher_multi_slices/sc_model/epoch=4-step=165-v1.ckpt
2026-01-20 11:19:56.742 | DEBUG | decipher.nn.models._basic:__init__:27 - {'gex_dims': [2000, 256, 32], 'dropout': 0.1, 'temperature_center': 0.07, 'lr': 0.001, 'weight_decay': 1e-05, 'lr_scheduler': False, 'num_training_steps': 99999, 'warmup_steps': 1000}
2026-01-20 11:19:56.754 | SUCCESS | decipher.emb:load_model:102 - Pre-trained model loaded from decipher_multi_slices/sc_model/epoch=4-step=165-v1.ckpt.
2026-01-20 11:19:56.761 | DEBUG | decipher.nn.models._basic:__init__:27 - {'fix_sc': False, 'spatial_emb': 'attn', 'transformer_layers': 3, 'emb_dim': 32, 'gex_dims': [2000, 256, 32], 'prj_dims': [32, 32, 32], 'num_heads': 1, 'dropout': 0.1, 'temperature_center': 0.07, 'temperature_nbr': 0.07, 'nbr_loss_weight': 0.5, 'lr': 0.0001, 'weight_decay': 1e-05, 'lr_scheduler': False, 'num_training_steps': 99999, 'warmup_steps': 1000}
2026-01-20 11:19:56.776 | DEBUG | rui_utils.torch.trainer:init_trainer:64 - Run model with precision 16-mixed
Using 16bit Automatic Mixed Precision (AMP)
GPU available: True (cuda), used: True
TPU available: False, using: 0 TPU cores
HPU available: False, using: 0 HPUs
/flash/grp/gglab/xiacr/DECIPHER-dev/conda/lib/python3.11/site-packages/pytorch_lightning/trainer/configuration_validator.py:68: You passed in a `val_dataloader` but have no `validation_step`. Skipping val loop.
/flash/grp/gglab/xiacr/DECIPHER-dev/conda/lib/python3.11/site-packages/pytorch_lightning/callbacks/model_checkpoint.py:652: Checkpoint directory /flash/grp/gglab/xiacr/DECIPHER-dev/docs/tutorials/decipher_multi_slices/sp_model exists and is not empty.
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0]
| Name | Type | Params | Mode
--------------------------------------------------------------
0 | center_encoder | MLP | 520 K | train
1 | nbr_encoder | ViT1D | 19.5 K | train
2 | projection_head | MLP | 2.2 K | train
3 | attn_pool | AttentionPooling | 1.1 K | train
4 | center_criterion | NTXentLoss | 0 | train
5 | nbr_criterion | NTXentLoss | 0 | train
--------------------------------------------------------------
543 K Trainable params
0 Non-trainable params
543 K Total params
2.175 Total estimated model params size (MB)
Metric train/total_loss improved. New best score: 3.651
Epoch 0, global step 33: 'train/total_loss' reached 3.65140 (best 3.65140), saving model to '/flash/grp/gglab/xiacr/DECIPHER-dev/docs/tutorials/decipher_multi_slices/sp_model/epoch=0-step=33.ckpt' as top 3
Epoch 1, global step 66: 'train/total_loss' reached 3.68946 (best 3.65140), saving model to '/flash/grp/gglab/xiacr/DECIPHER-dev/docs/tutorials/decipher_multi_slices/sp_model/epoch=1-step=66.ckpt' as top 3
Metric train/total_loss improved by 0.204 >= min_delta = 0.0. New best score: 3.447
Epoch 2, global step 99: 'train/total_loss' reached 3.44729 (best 3.44729), saving model to '/flash/grp/gglab/xiacr/DECIPHER-dev/docs/tutorials/decipher_multi_slices/sp_model/epoch=2-step=99-v1.ckpt' as top 3
Epoch 3, global step 132: 'train/total_loss' reached 3.48571 (best 3.44729), saving model to '/flash/grp/gglab/xiacr/DECIPHER-dev/docs/tutorials/decipher_multi_slices/sp_model/epoch=3-step=132-v1.ckpt' as top 3
Metric train/total_loss improved by 0.097 >= min_delta = 0.0. New best score: 3.350
Epoch 4, global step 165: 'train/total_loss' reached 3.35018 (best 3.35018), saving model to '/flash/grp/gglab/xiacr/DECIPHER-dev/docs/tutorials/decipher_multi_slices/sp_model/epoch=4-step=165-v1.ckpt' as top 3
`Trainer.fit` stopped: `max_epochs=5` reached.
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0]
2026-01-20 11:20:14.679 | INFO | decipher.cls:fit_omics:142 - Results saved to decipher_multi_slices
Step 3: Visualize results
Finally, we visualize the results. We can see that the batch effects are removed, while cell types and spatial regions are well separated.
[9]:
adata = slice1.concatenate(slice2, batch_key='slice')
adata.obsm['X_center'] = model.center_emb
adata.obsm['X_nbr'] = model.nbr_emb
adata = scanpy_viz(adata, ['center', 'nbr'])
/tmp/ipykernel_2686975/1478477664.py:1: FutureWarning: Use anndata.concat instead of AnnData.concatenate, AnnData.concatenate is deprecated and will be removed in the future. See the tutorial for concat at: https://anndata.readthedocs.io/en/latest/concatenation.html
adata = slice1.concatenate(slice2, batch_key='slice')
2026-01-20 11:20:14.913 | INFO | rui_utils.gpu:select_free_gpu:39 - Using GPU [0] as computation device.
2026-01-20 11:20:14.915 | INFO | rui_utils.gpu:manage_gpu:82 - Using GPU 0 and None memory strategy.
2026-01-20 11:20:14.917 | DEBUG | rui_utils.sc:_scanpy_viz:263 - Use rapids for visualization.
2026-01-20 11:20:15.303 | INFO | rui_utils.gpu:manage_gpu:82 - Using GPU 0 and None memory strategy.
2026-01-20 11:20:15.305 | DEBUG | rui_utils.sc:_scanpy_viz:263 - Use rapids for visualization.
[10]:

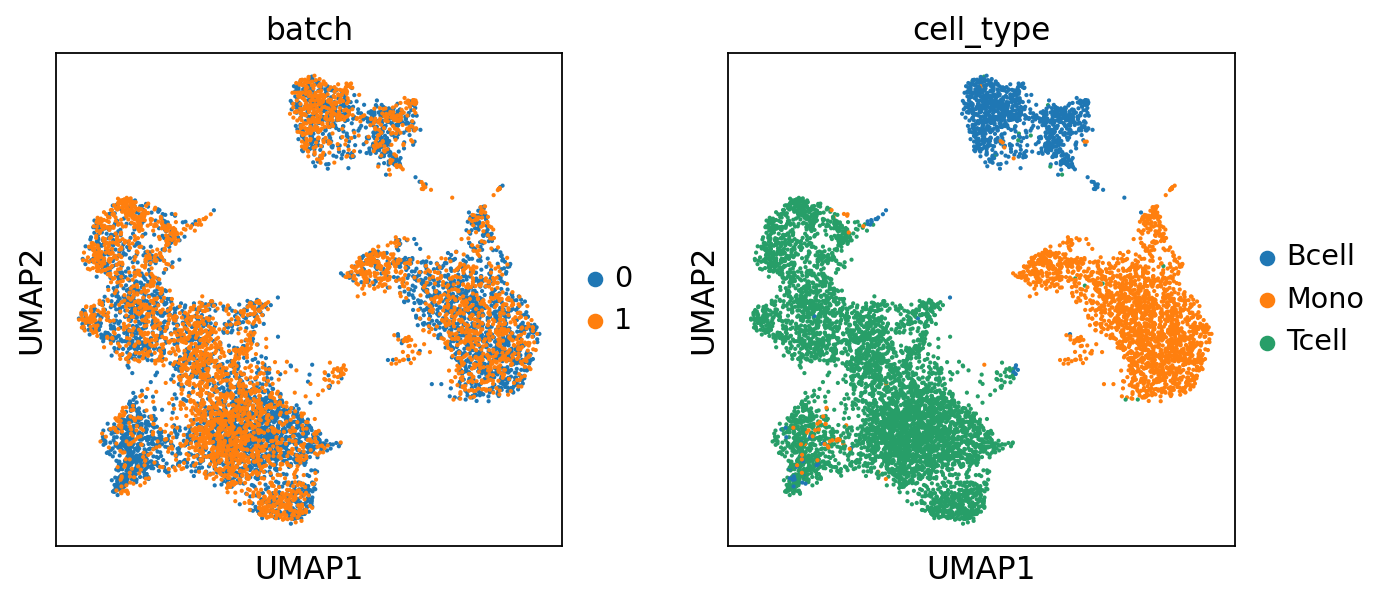

adata.obsm['X_umap'] = adata.obsm['X_umap_center'].copy()
sc.pl.umap(adata, color=['batch', 'cell_type'])
[11]:

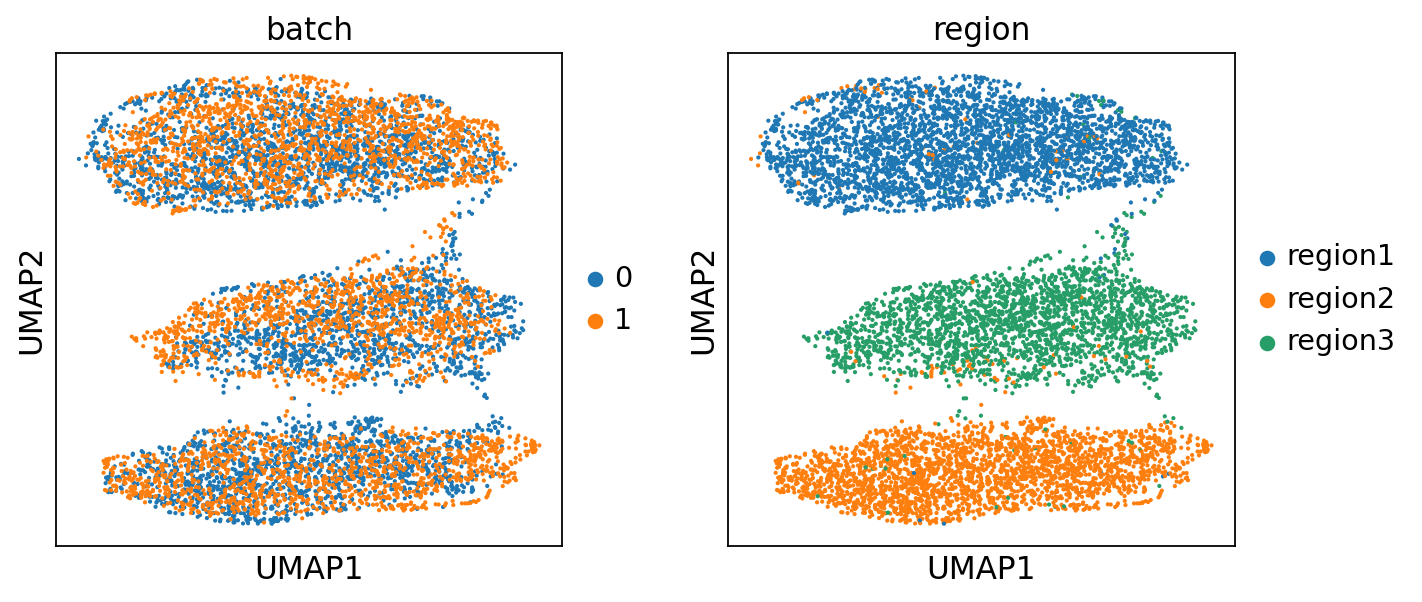

adata.obsm['X_umap'] = adata.obsm['X_umap_nbr'].copy()
sc.pl.umap(adata, color=['batch', 'region'])
